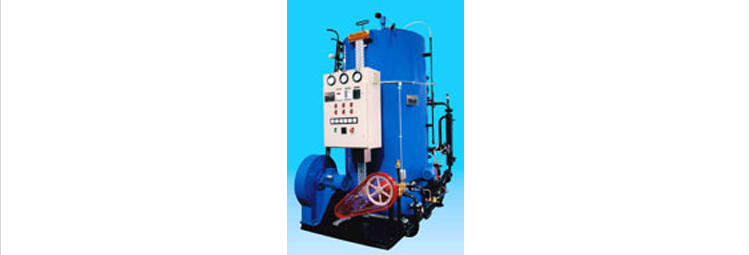

Revotech : Non IBR four pass fully steam generating boiler in oil fired design
Salient Features :
1) Fully automatic instant steaming.
2) Easy operation fail proof system.
3) Record efficiency.
4) Packaged models in unitised design.
REVOTECH is the latest design in coil type Non - IBR boilers. incorporating unique revolutionary principle of combustion known as " Reverse Flow " which increases combustion efficiency & allows high rate of heat flux & increases the efficiency of whole system. The boiler is also comprising of an atmospheric economizer to preheat the incoming feed water to boiler.
As REVOTECH is a fully automatic boiler there is no need of specially trained boiler attendant during operation.
NON – 1BR : The volumetric holding of the steam generating coil is less than 25 litres, by virtue of which the boiler is exempted from Indian Boiler Regulations.
Forced circulation, water tube & Reverse flow design enables the boiler to produce steam at full working within 3 to 5 minutes from cold start.
REVOTECH is fully safe as it is having all safety precautions. REVOTECH is available in a wide range of steam generating capacities from 50 Kgs/hr to 1000 Kgs/hr F & A 100°C designed for maximum pressure of 15 Kg/cm2 at overall efficiency of 88± 2% on N . C . V.
